Adding Formulas is done through an easy to use interface that allows you to introduce other formulas, technical studies, symbols and arithmetic into your formulas. You will use the Add Formula Box on the main Formula Builder window.
Formulas |
|
Name |
The name given to a defined formula |
Formula |
This is the input field for your formula |
Symbol |
Select to search for a symbol to use in your formula |
Field |
Select to choose a field to use with the symbol (See Below for additional information) |
Study |
Select to choose a study to be used within the formula (See Below for additional information) |
Formula |
Select to choose a previously created formula to be used within the formula (See Below for additional information) |
Realtime Formula Status
In the bottom-left corner a real time evaluation of your formula will be displayed.

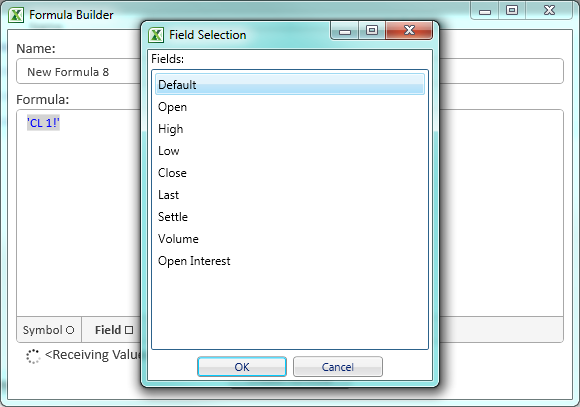

Field
You can select to use a different time series field in your formula, the default is Last.

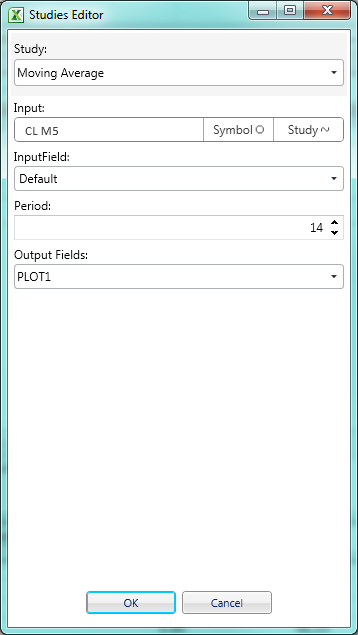

Study
You can select a study to be used within your formula. In the study dialog you will set various properties for the study and it will then be added to your formula

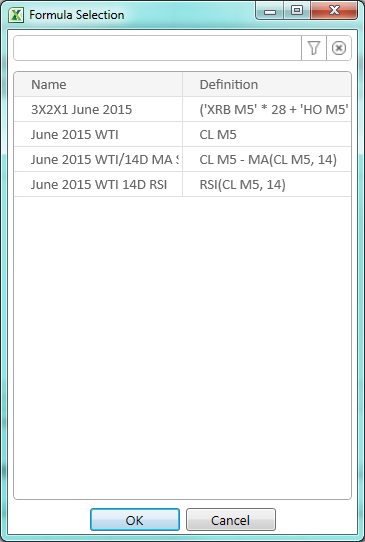

Formula
You can select a previously created formula to use within a new formula.
